Removing and installing/replacing backrest adjustment motor (M4 Coupe)

Necessary preliminary tasks:

Remove COVERS ON FRONT SEAT .

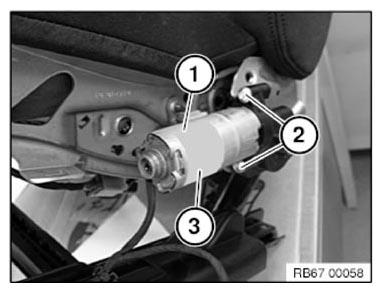

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove electric motor (3).

G10097651

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out a function check.

Replacement:

Initialize BACKREST ADJUSTMENT MOTOR .
