Removing and installing/replacing cover on left or right rollover protection bar (M4 Convertible)

Special tools required:

• 00 9 340

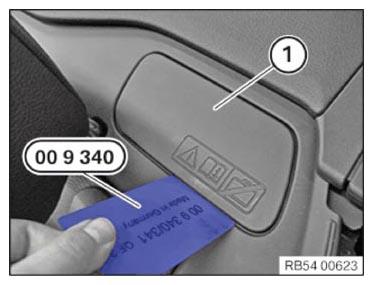

Unclip trim (1) with special tool 00 9 340.

Courtesy of BMW OF NORTH AMERICA, INC.

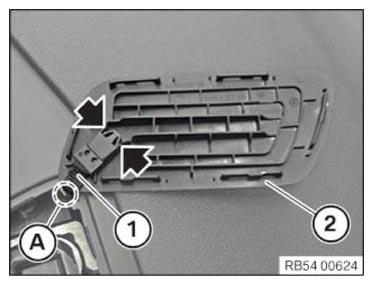

Press together latch mechanisms on retaining strap (1) and feed out retaining strap (1) from trim (2).

Installation note:

Make sure retaining strap (1) is correctly seated in area (A).

Courtesy of BMW OF NORTH AMERICA, INC.
