Removing and installing/replacing left or right hinge (M4 Convertible)
Necessary preliminary tasks:
- Remove HINGE COVER .
Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing).
- Microencapsulated screws must not be retightened
- Thread of nut must be cleaned beforehand in event of repeated use
NOTE:
An assistant will be required for the following operations.
With a second person helping, secure roof shell at front against tilting.

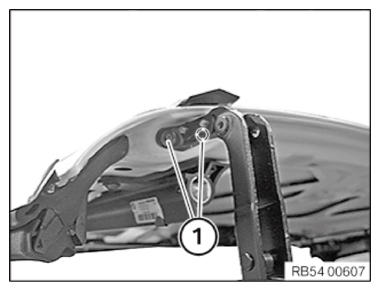

Release screws (1).
Installation note:
Replace microencapsulated screws.
Tightening torque 54 37 10AZ .
Release nuts (1) on roof hinge bracket.
Installation note:
Replace nuts.
Screw on bracket loosely.
Bracket should still be able to be slid in order to center itself.
Close soft top.
Screw down rear nut and open soft top.
Screw down front nut.
Tightening torque 54 37 10AZ .
Check GAP DIMENSIONS for soft top.
