Home >> BMW >> 2018 >> M4 2D Convertible, Automatic DCT Trans >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sunroof & Convertible Top - Repair -- M4 (F82 & F83) >> 54 37 Retractable Hardtop (M4 Convertible) >> Align basic gauge (M4 Convertible) >> Remounting the coupling lock gauge from E93 to F33/F83

Remounting the coupling lock gauge from E93 to F33/F83

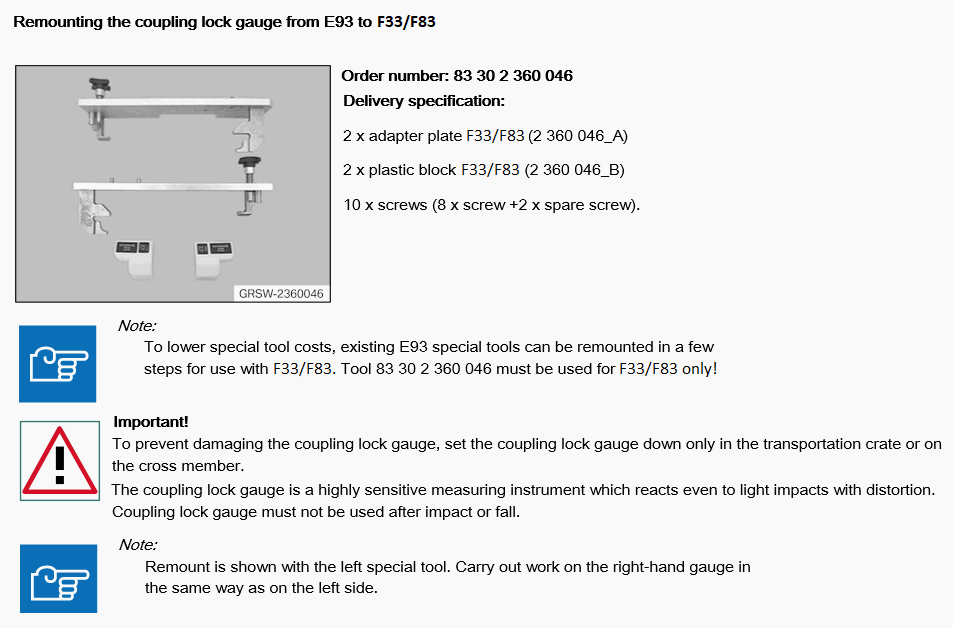

G00554343

Courtesy of BMW OF NORTH AMERICA, INC.

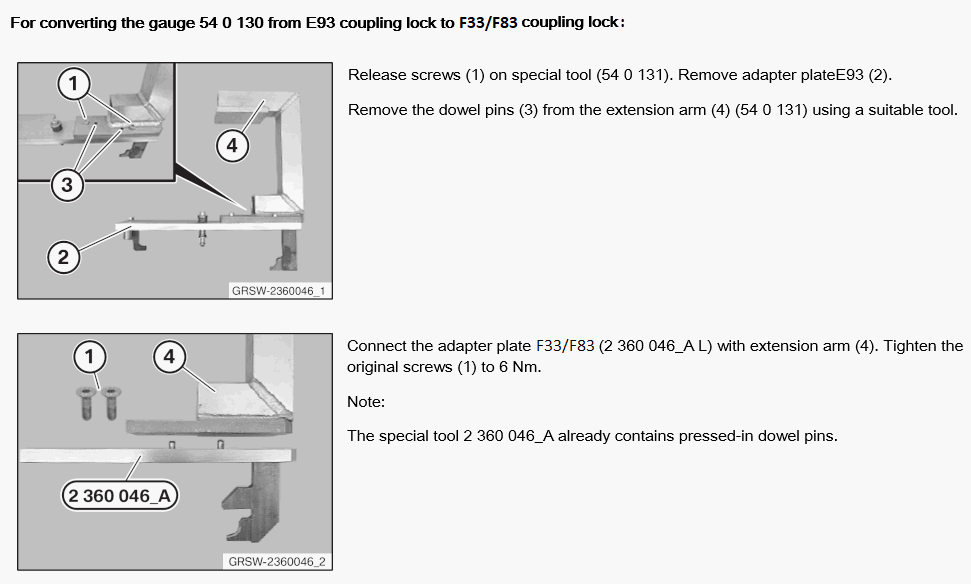

G00554344

Courtesy of BMW OF NORTH AMERICA, INC.

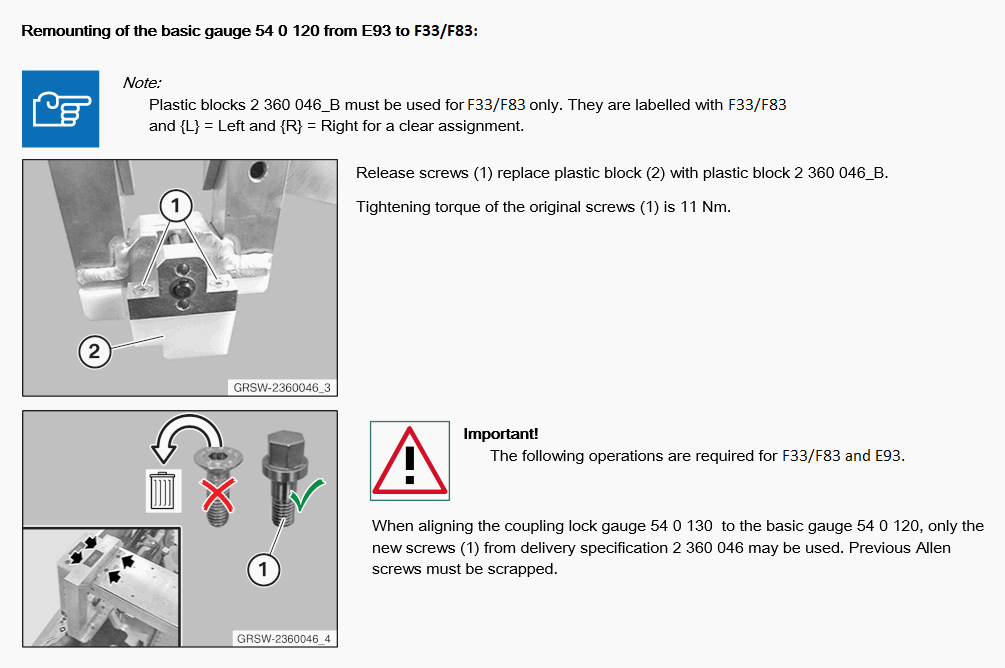

G00554345

Courtesy of BMW OF NORTH AMERICA, INC.
