Topping up/extracting fluid, checking oil level (M4 Convertible)

• The hydraulic fluid does not have to be changed because the system is filled with life-time oil filling.
• In the even of leaks, only the approved hydraulic fluid may be used: Aral Vitamol ZHM, BMW part number 54 34 0 394 395 (250 ml)
• All hydraulic cylinders must be completely retracted (soft top closed)

Necessary preliminary tasks:

• Remove TRIM PANEL FOR LUGGAGE COMPARTMENT SIDE MEMBER on left and right.

Unfasten screw connection (1).

Tightening torque 51 71 11AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

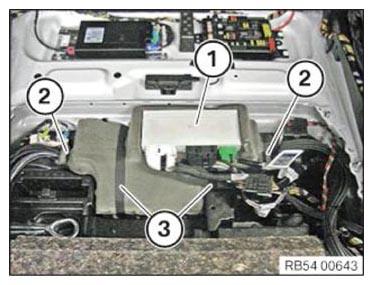

Feed out control unit (1).

Release cable strap (2).

Release retaining straps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

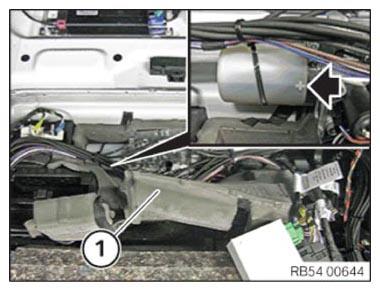

Fold open sound insulation (1).

Checking oil level:

Oil level must be within the marks (arrow in illustration) when the assembly is horizontal.

Courtesy of BMW OF NORTH AMERICA, INC.

Topping up oil:

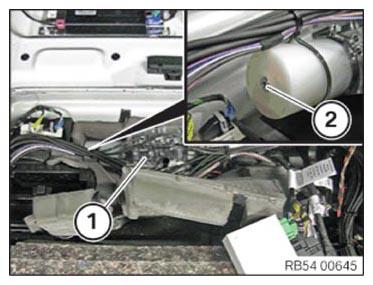

Lift out hydraulic unit (1) a little.

Undo oil filler plug (2).

Pour in required oil quantity.

Installation note:

Check oil level in the meantime.

Pour in hydraulic fluid only up to marking on oil reservoir.

Courtesy of BMW OF NORTH AMERICA, INC.

Provide a suitable collecting vessel.

Extracting oil:

Lift out hydraulic unit (1) a little.

Undo oil filler plug (2).

Tilt hydraulic unit (1) and let oil flow out or draw off with suitable auxiliary equipment.

Courtesy of BMW OF NORTH AMERICA, INC.
