Removing and refitting/replacing both rear seat backrests

Necessary preliminary tasks:

• Remove ARMREST SIDE SECTION .
• Remove REAR SEAT .

Both backrests have to be pulled out of the center mount at the same time.

Courtesy of BMW OF NORTH AMERICA, INC.

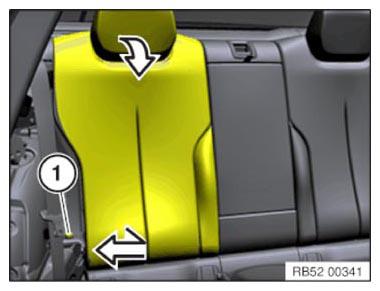

Left backrest:

• Undo screw (1)

Tightening torque 52 26 01AZ .

• Fold backrest forwards
• Pull backrest forwards and outwards out of center mount

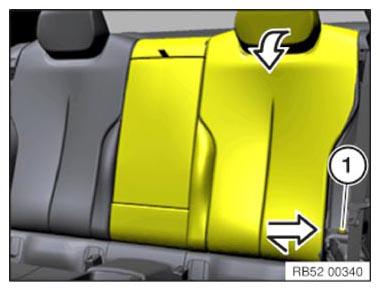

Right backrest:

• Undo screw (1)

Tightening torque 52 26 01AZ .

• Fold backrest forwards

Courtesy of BMW OF NORTH AMERICA, INC.

• Pull backrest forwards and outwards out of center mount
