Removing and installing/replacing storage tray of rear seat

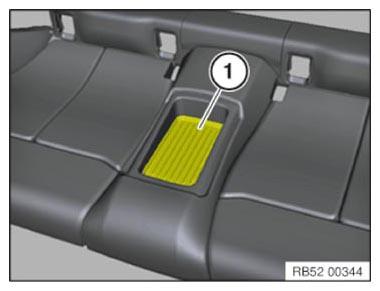

Remove the insert mat (1).

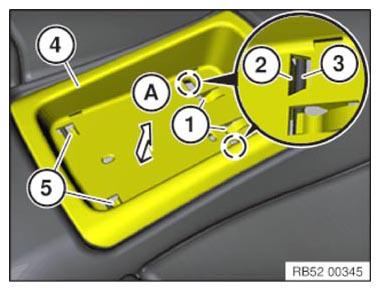

Lift latch mechanisms (1) and at the same time remove latch mechanisms (2) towards the front at the top (A) from the seat frame (3).
Carefully remove storage tray (4) towards top rear from guides (5).

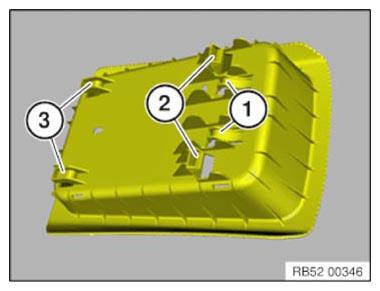

Installation note:
Latch mechanisms (1 and 2) and guides (3) must not be damaged.
