Removing and installing backrest (Convertible)

Necessary preliminary tasks:

• Remove BACKREST SIDE SECTION ON LEFT AND RIGHT .

Unlock and tilt back backrest.

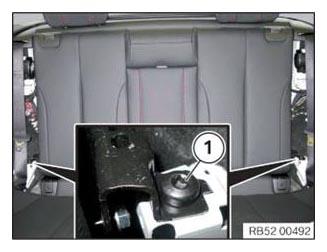

Release screws (1).

Tightening torque 52 24 1AZ .

Remove backrest.
