Replacing backrest cover (Sport) for front passenger seat (Convertible)

Special tools required:

Necessary preliminary tasks:

Detach backrest cover on left and right from metal retainer.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip soft-top bow (1) on left and right and detach from backrest frame.

Unclip cover in direction of arrow.

Installation note:

Remove metal clamps (1) left and right on the cover.

Bend up metal clamps and insert back into the cover.

Clip metal clamps (1) with cover into the slot on the seat mechanism.

Guide lug must not be broken.

Replace faulty cover if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover from metal retainer.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover from metal retainer.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lower section of welt from backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt from backrest frame in upper area.

Courtesy of BMW OF NORTH AMERICA, INC.

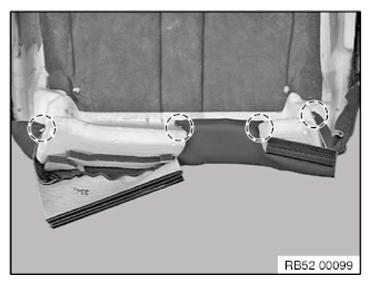

Loosen retainers.

NOTE: Remove all remnants of clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

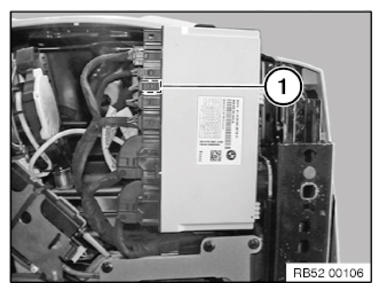

Unlock plug connection (1) for seat heating and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

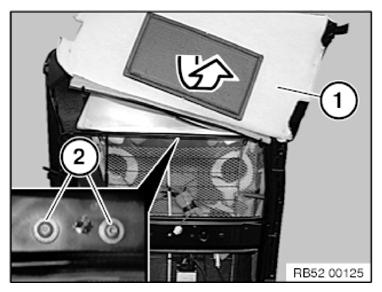

Pull off backrest cover (1) sideways and towards top from backrest frame.

Unfasten screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

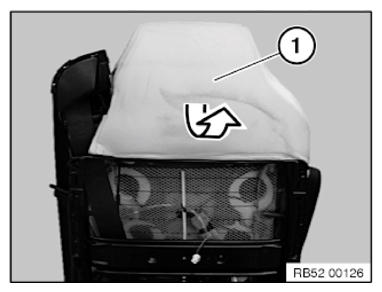

Pull off backrest upper section foam part (1) including inlay.

Courtesy of BMW OF NORTH AMERICA, INC.

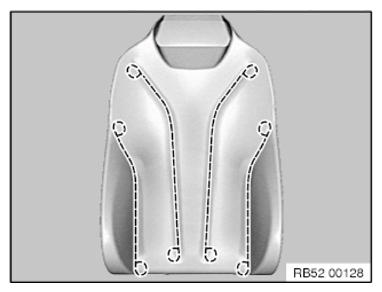

Loosen retainers.

NOTE: Remove all remnants of clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

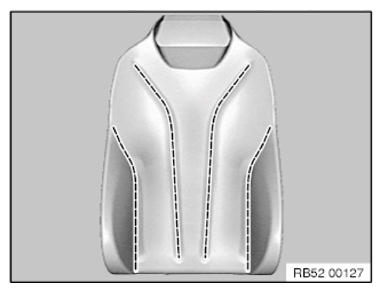

Release all clamps in marked area.

Remove backrest cover from padding.

NOTE: Remove all remnants of clamps from backrest cover and upholstery.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Pull trim wires out of backrest cover.

Cut new backrest cover to size and insert trim wires.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend new clamp (2) with special tool 52 0 050.

Courtesy of BMW OF NORTH AMERICA, INC.
