Replacing fan for neck heater on left or right side (Convertible)
Necessary preliminary tasks:
- Remove GUIDE SLEEVES for head restraint.

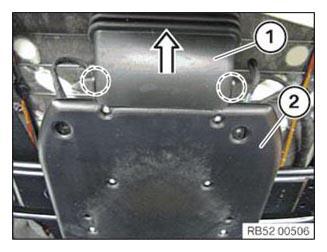

Unlock the air duct (1) in the marked area and detach it from the fan (2) by pulling it upward.

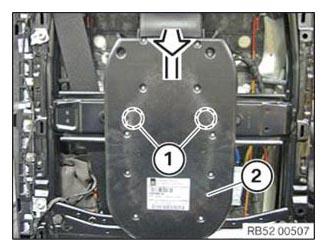

Release screws (1).
Carefully extract the fan (2) by moving it upward.

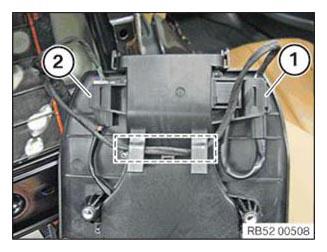

Unlock and detach plug connections (1 and 2).
Carefully extract the wiring harness from the fan.
Installation note:
Ensure that the wiring harness is routed correctly in the marked area.

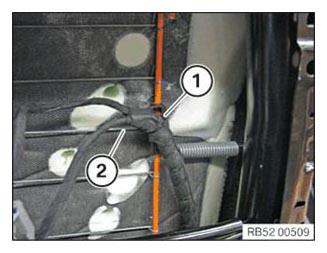

Installation note:
The holder for the wiring harness (1) must be attached over the third wire from the top (2).
