Replacing air duct for neck warmer (Convertible)

Necessary preliminary tasks:

• Remove GUIDE SLEEVES  for head restraint.
• Remove NECK WARMER COVER .

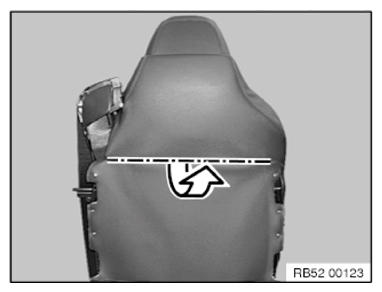

Detach welt from backrest frame in upper area.

Courtesy of BMW OF NORTH AMERICA, INC.

Sports seat only:

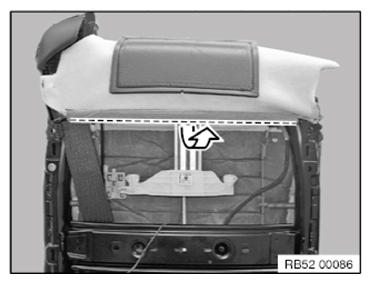

Detach welt from backrest frame in upper area.

Courtesy of BMW OF NORTH AMERICA, INC.

Sports seat only:

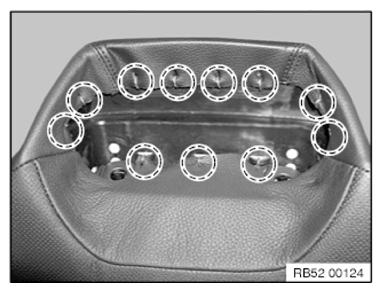

Loosen retainers.

Courtesy of BMW OF NORTH AMERICA, INC.

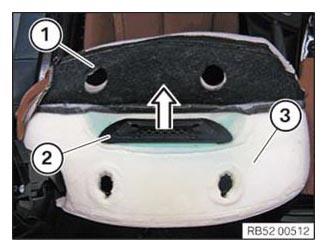

Fold backrest cover (1) forwards.

Feed air duct (2) upwards out of backrest upholstery (3).

Courtesy of BMW OF NORTH AMERICA, INC.
