Removing and installing cover of inner backrest (Convertible)

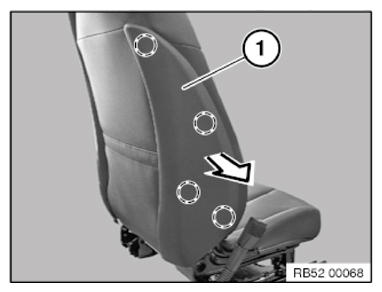

Unclip cover (1) in direction of arrow.

G10047027Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

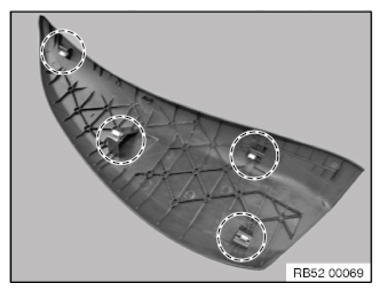

Pre-install metal clamps in trim.

G10047028Courtesy of BMW OF NORTH AMERICA, INC.
