Removing and installing/replacing luggage compartment light (tailgate) (M4 Convertible)

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

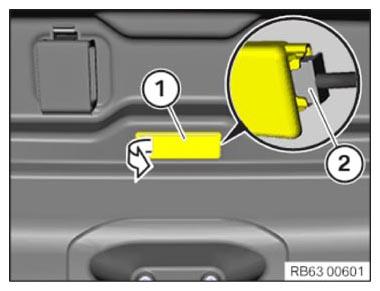

Pry out luggage compartment light (1) in direction of arrow.

Disconnect plug connection (2) and remove luggage compartment light (1).

G10209723

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert BULB .
Verify BULB TYPE .
