Removing and installing/replacing complete interior roof light (front) (M4 Convertible)

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

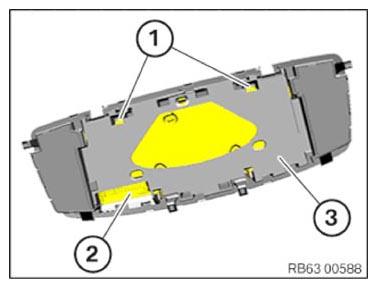

Release interior roof light (1) at clamps (2) and feed out of roof switch cluster (3).

Replacement:

If necessary, remount bulbs.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

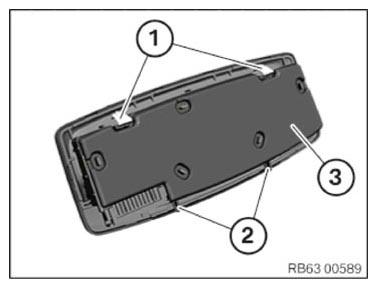

Clamps (1) and guides (2) on interior roof light (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
