Removing and installing/replacing complete ceiling light (rear) (M4 Convertible)

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Move soft top into service position.

Courtesy of BMW OF NORTH AMERICA, INC.

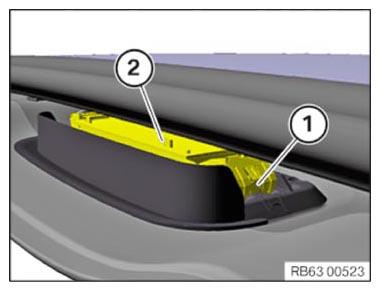

Unlock clamp (1) using a 5mm screwdriver.

Remove interior roof light (2) from below and disconnect corresponding plug connection.

Replacement:

If necessary, remove bulbs.

Courtesy of BMW OF NORTH AMERICA, INC.
