Removing and installing/replacing left socket housing for rear light (on side wall) (M4 Coupe)

Necessary preliminary tasks:

• Remove REAR LIGHT .

Courtesy of BMW OF NORTH AMERICA, INC.

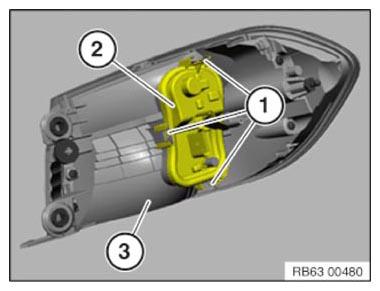

Release catches (1).

Remove socket housing (2) from rear light (3).

Installation note:

Catches (1) must not be damaged or missing.

Make sure socket housing (2) is correctly seated on rear light (3).

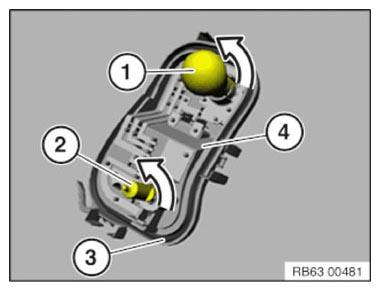

Installation note:

Gasket (3) on socket housing (4) must not be missing or damaged.

Replacement:

Carefully press bulb for turn indicator (1) and bulb for brake light (2) into socket housing (4), turn in direction of arrow and remove from socket housing (4).

Courtesy of BMW OF NORTH AMERICA, INC.
