Replacing left LED fan (inner)

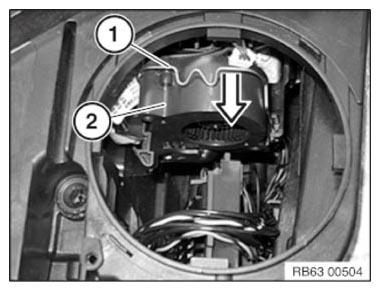

Turn protective cap (1) in direction of arrow and remove in upward direction.
IMPORTANT:
Risk of damage due to moisture penetration!
Installation note:
Seal in protective cap (1) must not be missing or damaged.
Replace protective cap (1) if necessary.
COMPLY WITH INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must be correctly engaged.
Release wire spring clip (1) in direction of arrow.
Remove LED fan (2) and disconnect associated plug connection.
