Removing and refitting/replacing top view camera

Necessary preliminary tasks:

• Remove MIRROR SIDE REPEATER .

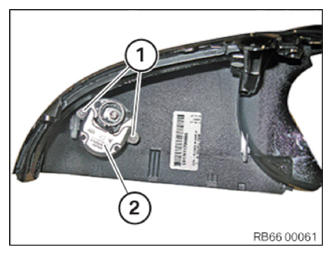

Release screws (1).

Remove exterior mirror camera (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out calibration via the following path:

• Service function
• Body
• All-round vision camera
• Calibration of all-round vision camera
