Removing and installing (replacing) control unit for reversing camera

Necessary preliminary tasks:

• Remove TRIM PANEL FOR PEDAL MECHANISM .

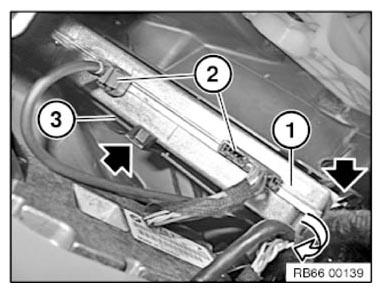

Unlock plug connections (2) and disconnect.

Unlock latches at marked points.

Remove control unit (1) from holder (3) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide (1) on control unit (2) must be inserted in corresponding recess on counter support.

Make sure control unit (2) is securely seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Carry out PROGRAMMING/ENCODING .
• Calibrate REVERSING CAMERA .
