Removing and installing/replacing of the Parking Maneuvering Assistant control unit (M4 Convertible)

Necessary preliminary tasks:

• Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

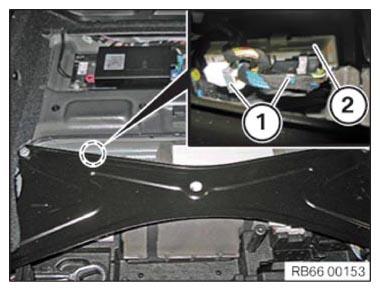

Unlock plug connections (1) and disconnect.

Pull out Parking Maneuvering Assistant control unit (2) in an upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
