Removing and installing/replacing left or right horn

Necessary preliminary tasks:

Release FRONT WHEEL ARCH COVER at front area

NOTE: Graphic displays F20, deviations in detail possible in other models.

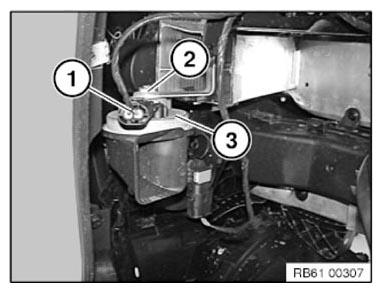

Unfasten plug connection (1) and disconnect.

The nut (2) must not be released.

Bore out the blind rivet on the holder of the fanfare with the aid of a suitable drill (e.g. 8 mm).

Remove the fanfare (3) including the holder.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Electromechanical fanfare is installed as standard. The electronic fanfare is only installed in China, India, Russia,
South Africa and Gulf states as of 01/2011.

Electromechanical fanfare
Electronic fanfare

Courtesy of BMW OF NORTH AMERICA, INC.

Distinguishing features:

Electromechanical fanfare has a black connector (1)
Electronic fanfare has a white connector (3)
Only the electromechanical fanfare has no adjusting screw (2)
Holder (4) is vehicle-specific and may deviate from the graphic.

Attention!

In vehicles with a production data before 01/2011, both fanfares must be replaced in the countries listed above.

The electronic fanfare has a different sound pattern.

Combining the mechanical and electronic fanfares is not permissible.

The connector position may vary slightly.

Pay particular attention to ensuring that the holder is securely seated on the vehicle and that the fanfare is securely seated on the holder! This greatly influences the tone!
