Removing and installing (replacing) storage shelf trim panel (M4 Coupe)

Necessary preliminary work:

• Remove TRIM PANEL FOR ROOF PILLAR AT REAR  left/right
• Reposition left/right rear seat backrest

Version with roller sunblind:

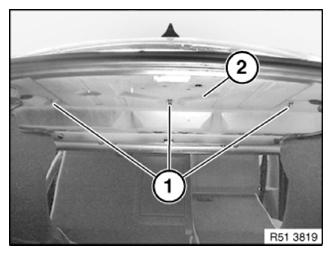

Release screws (1) on luggage compartment floor (2).

Tightening torque 51 46 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Version with roller sunblind:

Release and disconnect plug connection (1) at right C-pillar.

Courtesy of BMW OF NORTH AMERICA, INC.

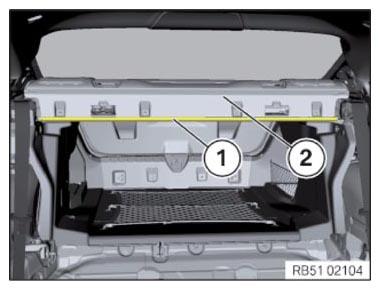

Pull off gasket (1) from storage shelf (2).

Courtesy of BMW OF NORTH AMERICA, INC.

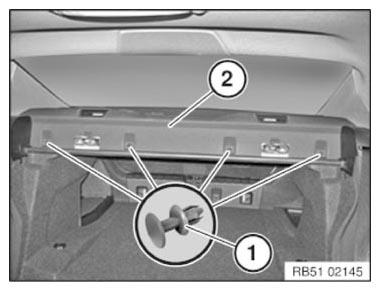

Release expanding rivet (1).

Slightly raise storage shelf (2) at front and unlock and detach plug connections underneath for speaker.

Remove storage shelf (2) toward the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure storage shelf is correctly seated in ventilation grille (1).

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement with appropriate version

• Remount left/right speaker. Refer to REMOVING AND INSTALLING/REPLACING REAR MID-RANGE SPEAKER (IN STORAGE SHELF) (M4 COUPE, M4 CONVERTIBLE) and REMOVING AND INSTALLING/REPLACING REAR TWEETER (IN STORAGE SHELF) (M4 COUPE, M4 CONVERTIBLE) .
• Remount ROLLER SUNBLIND .
