Removing and installing rear left or right side trim panel (M4 Coupe)

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Release SEAT BELT COVER
• Remove ARMREST SIDE SECTION
• Remove REAR SEAT

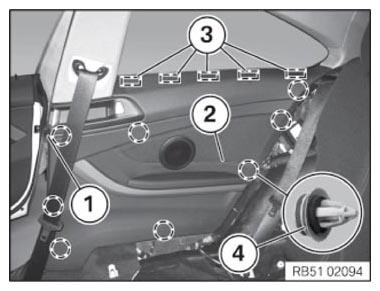

Detach edge protector (1) in area of side trim (2).

Carefully release side trim panel (2) from clamps (3) and clips (4) with special tool 00 9 317 starting at the front.

Unlock associated plug connections and disconnect.

Remove side trim panel (2).

Installation note:

If necessary, replace faulty clips (4) and clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

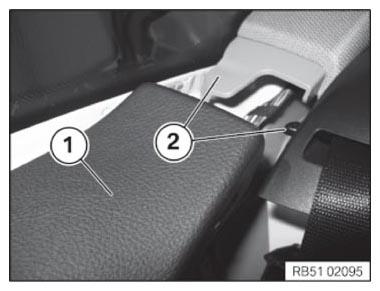

Side trim panel (1) must fit correctly in guides (2).

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, swap over the following parts:

• TWEETERS
• SPEAKER
• Seat-belt extender
• POWER AMPLIFIER FOR SEAT-BELT EXTENDER
