Removing and installing left or right front door trim panel (M4 Coupe, M4 Convertible)
Special tools required:
- 00 9 325
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove COVER ON DOOR HANDLE .
- REMOVE SWITCH panel
Only M4 GTS:
- Remove the pull strap
Attention!
Do not ever pull on the folding compartment.

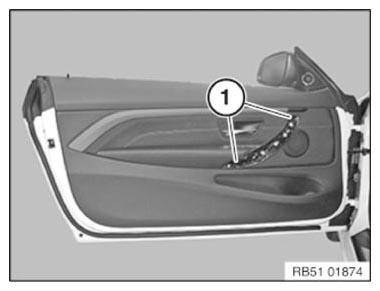

Release screws (1).
Tightening torque 51 41 1AZ .
Attention!
Risk of damage!
Do not pull folding compartment. Door trim panel lower section may separate from door trim panel upper part.
Mask front door and door trim panel in working area with plastic adhesive tape.

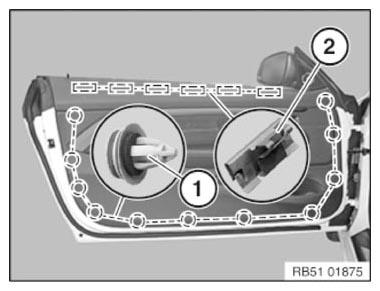

Release door trim panel using special tool 00 9 325 in A-pillar/mirror triangle area starting at clips (1).
Pull off door trim panel from clamps (2).
Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).
Installation note:
Perform function check for door inside handle with door open and rotary striker lock closed.
Feed out door wiring harness from all brackets.
Unlock and disconnect all plug connections, then remove door trim panel.
Installation note:

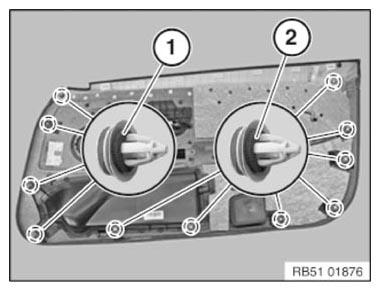

Make sure the installation location of the clips (1 and 2) is correct.
- Clips, grey
- White clips
Installation note:
After assembling the door trim panel proceed as follows:
- Open side window
- Lock with ignition key
- Check for ease of movement on locking button linkage
- If necessary, align linkage
