Removing and installing/replacing front side panel trim on left or right (M4 Coupe)
Special tools required:
- 00 9 327

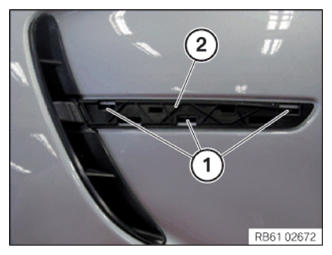

Release trim (1) with special tool 00 9 327 on retaining lug (2) and remove carefully.
Installation note:
Retaining lugs (2) must not be missing or damaged.

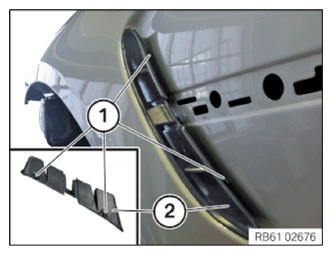

Release retaining lug (1) from trim (2) and remove.
Installation note:
Retaining lugs (1) must not be missing or damaged.

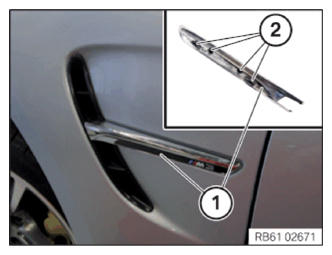

Release retaining lug (1) from air duct (2) and remove air duct (2) towards the rear.
Installation note:
Retaining lugs (1) must not be missing or damaged.
