Replacing washer fluid reservoir for windscreen washer system
Necessary preliminary tasks:
- Remove FRONT RIGHT WHEEL ARCH COVER .
NOTE:

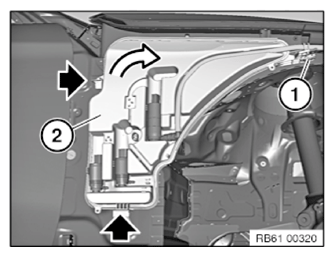

Shown with side wall removed for purposes of clarity.
Release screw (1).
Tightening torque 61 66 1AZ .
Pull the washer fluid reservoir (2) out of the guides (arrow) in the direction of the arrow).
Unlock and disconnect all plug connections.
Unlock filler hose and pull it off the fitting on the washer fluid reservoir.
NOTE:
Catch any escaping washer fluid if necessary.
Replacement:
- Modify all windscreen washer pumps. Refer to REMOVING AND INSTALLING/REPLACING WASHER PUMP FOR HEADLIGHT CLEANING SYSTEM and REMOVING AND INSTALLING/REPLACING WINDSCREEN WASHER PUMP .
Installation note:
- Replace strainers on washer pumps
- Coat sealing rings of washer pumps with lubricant.
- Lay hose pipes of washer pumps without kinks and clip into holders on washer fluid reservoir
- Top up the washer fluid reservoir
