Removing and installing/replacing TV module (M4 Convertible)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

NOTE: Comply with notes on HANDLING OPTICAL FIBRES .

Necessary preliminary tasks:

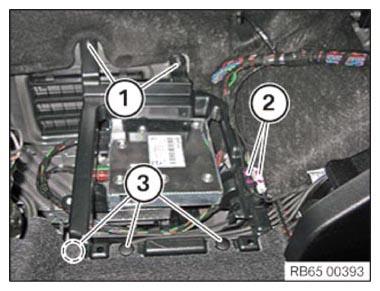

Unscrew nuts (1).

Disengage plug connections (2).

Release expanding rivet (3).

Courtesy of BMW OF NORTH AMERICA, INC.

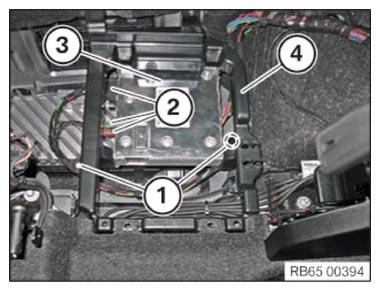

Unclip cable clip (1).

Unlock plug connections (2) and disconnect.

Remove TV module (3) with holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

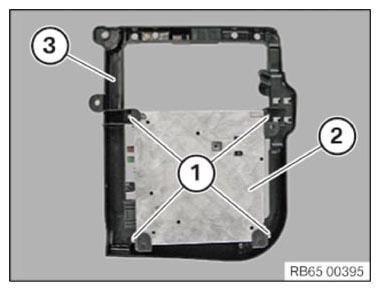

Release screws (1).

Remove TV module (2) from holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
