Removing and installing/replacing all washer jets of windscreen washer system

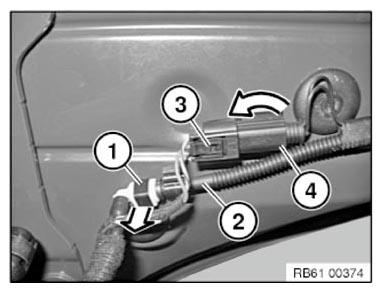

Unlock hose coupling (1) in direction of arrow and detach washer fluid line (2).
Unfasten plug connection (3) and disconnect.
Turn connector with holder (4) counterclockwise slightly and remove in downward direction.

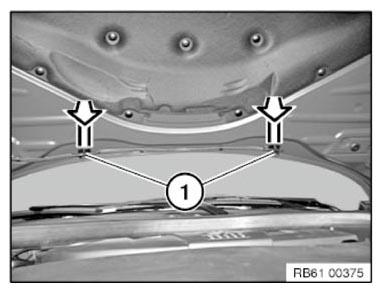

Press all washer jets (1) in direction of arrow upwards and remove.
Open all brackets and remove washer fluid line.
Installation note:

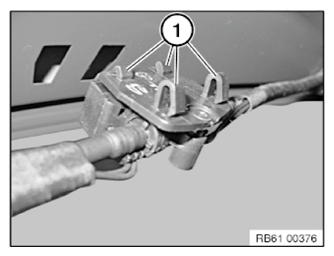

Retaining lugs (1) must not be missing or damaged.
Check washer jet setting.
Top up window washer system.
NOTE:
Washer jets are preset by the manufacturer, do not change this setting if possible.
Setting can be changed in a specific case for a customer complaint.
Changes in the setting must take into account the possible driving situations (high/low speed; with/without washing additive) and must be performed with care.
Setting can be changed in a specific case for a customer complaint.
Changes in the setting must take into account the possible driving situations (high/low speed; with/without washing additive) and must be performed with care.

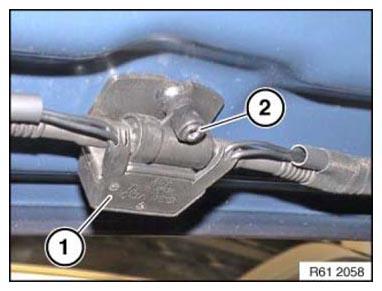

If necessary, adjust left/right washer jet (1) by using screw (2).
