Replacing operating unit for seat adjustment (M4 Convertible)

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

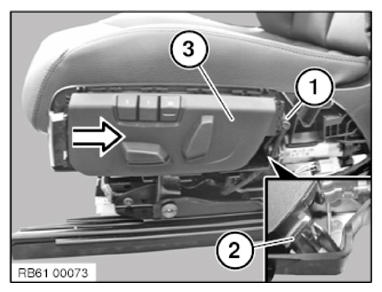

Unfasten plug connection (1) and disconnect.

Release latch mechanism (2).

Remove operating unit (3) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

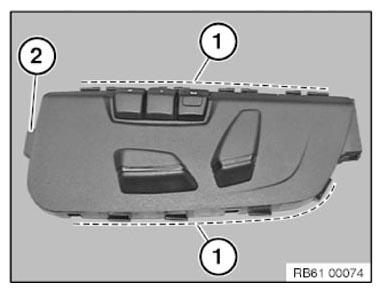

Catches (1) and (2) on the operating unit must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
