Replacing operating unit for seat adjustment (Except M4 Convertible)
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Necessary preliminary tasks:
- Remove COVER FROM FRONT SEAT .

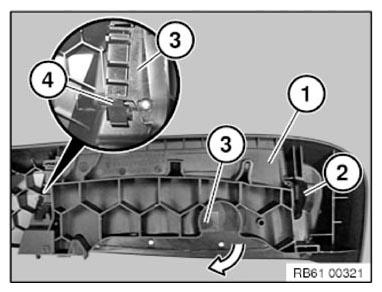

Unlock catch (2).
Unscrew the operating unit (3) in the direction of arrow from front seat cover (1).
Installation note:
Operating unit (3) must be fitted correctly under the latch mechanism (4).
