Socket housings, 5-pin, 8-pin, System MQS/MPQ

Manufactured by AMP  : The following contact types without single conductor seal can be fitted in the connector housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing, 5-pin (Hybrid System MQS/MPQ)

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Socket housing, 8-pin (MQS)  :

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

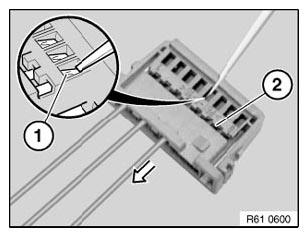

Hold down snap-in hooks (1) of contact and pull cable with contact as far as secondary lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

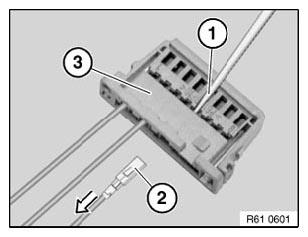

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.
