Removing and installing (replacing) gear selector switch (DKG)

Necessary preliminary work:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
• Remove GWS TRIM .

Removal:

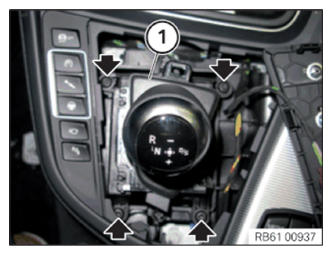

Undo all screws (1) on the GWS.

Courtesy of BMW OF NORTH AMERICA, INC.

Raise the GWS (2).

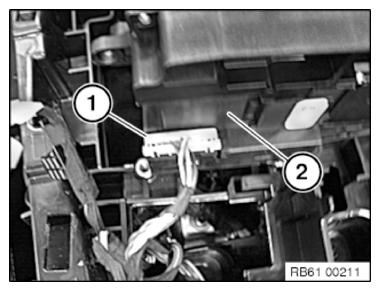

Unlock and disconnect the connector (1) on the GWS (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach the connector (1) to the GWS (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Join the GWS (1).

Tighten down all bolts.

Tightening torque 61 31 1AZ .

Installation note:

Insert gear selector switch (1) correctly in front and rear fixation of center console support.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .

Required follow-up work:

• Install GWS TRIM .
• Connect NEGATIVE BATTERY LEAD .
