Removing and installing (replacing) Car Information Computer (CIC)

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

Necessary preliminary tasks:

• Disconnect BATTERY EARTH LEAD .
• Remove RADIO AND IHKA CONTROLS .

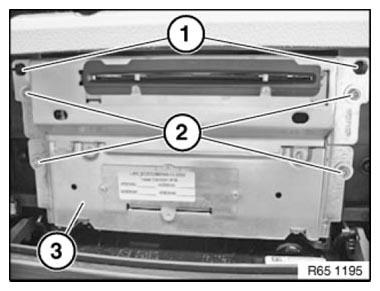

Unfasten screws (2).

Pull CIC (3) out of guide.

Installation note:

Make sure CIC (3) is correctly seated in guide lugs (1).

Courtesy of BMW OF NORTH AMERICA, INC.

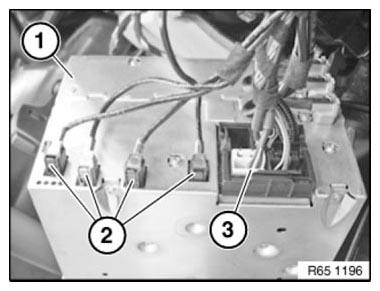

Unlock plug connections (2) and (3) and disconnect.

Remove CIC (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Only for US models with satellite radio:

When replacing the CIC unit, additional work is required!

• Refer to REPLACING SATELLITE TUNER, AS OF 09/2009 .

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

For vehicles with Teleservices optional equipment:

• Update services via menu in the central information display.

Load additionally for following vehicles' service history:

• 1-Series F2x, 3-Series F3x from series introduction
• F01, F02, F03, F07, F10, F11 with production date from 07/2013
• F06, F12, F13 with production date from 03/2014
• F15, F16 from volume production launch
• F18 with production date from 09/2013
• F25 with production date from 04/2014
• F26 as of series introduction

Load service history:

• 05 Maintenance and Pre-Delivery Check
• Service history
