Removing and installing/replacing a front center right (inside) ultrasonic transducer (Park Distance Control)
Necessary preliminary tasks:
- Remove FRONT BUMPER PANEL .

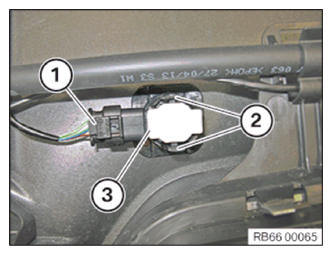

Unfasten plug connection (1) and disconnect.
Unlock latch mechanisms (2) and pull ultrasonic transducer (3) up and out of bracket.
Installation note:
Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!
Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).
Installation note:
Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
