Frame Reference Body Dimension Rep-UEB-RAF3941-4106100-V.2

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Dimension tolerances:

≤ 1000 mm ± 1.5 mm
≥ 1000 mm ±2.5 mm

The checkpoints shown serve to check the body and the set of attachments.

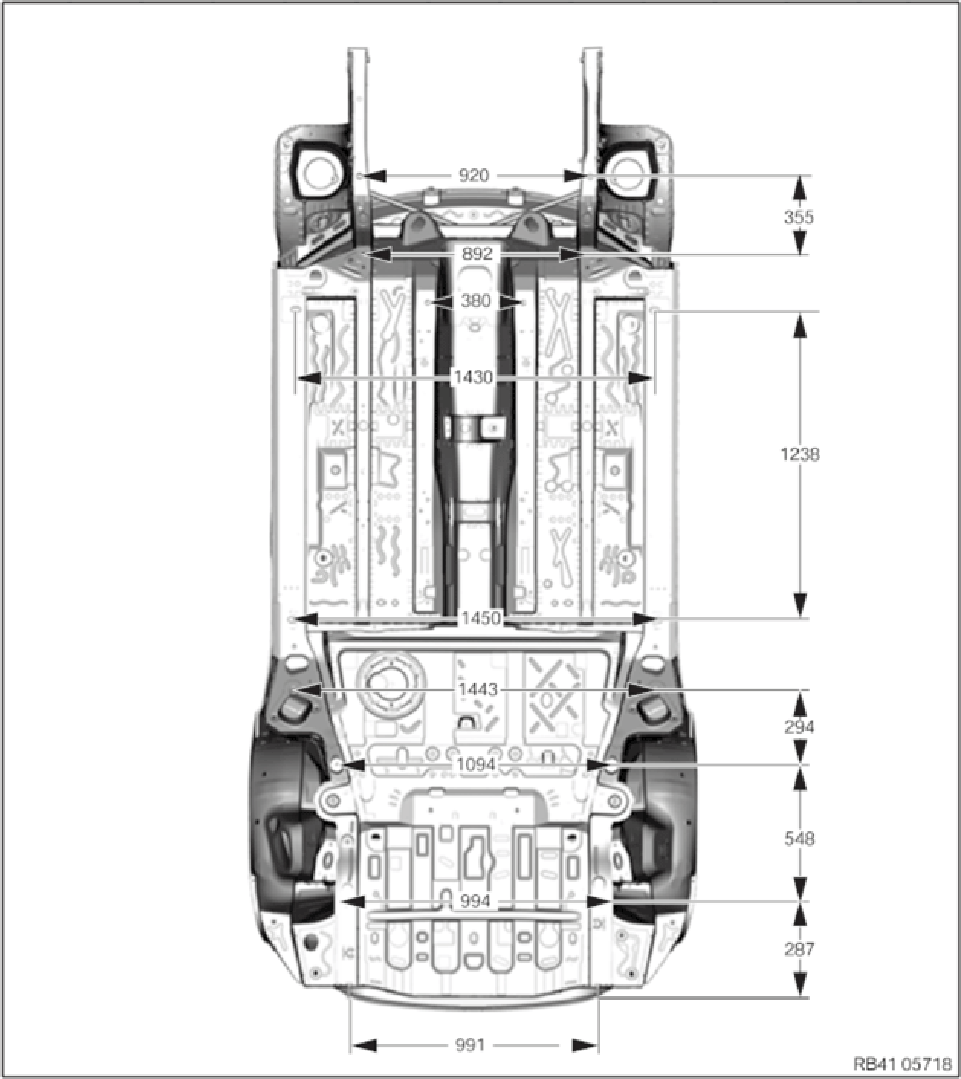

View Of Vehicle Under/Body 1

Fig 1: Underbody Frame Reference Body Dimensions And Measurement Points (Underbody View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

View Of Vehicle Underbody 2

Courtesy of BMW OF NORTH AMERICA, INC.

Front End View

Fig 2: Engine Compartment Underbody Frame Reference Body Dimensions And Measurement Points (Front End View)

Courtesy of BMW OF NORTH AMERICA, INC.

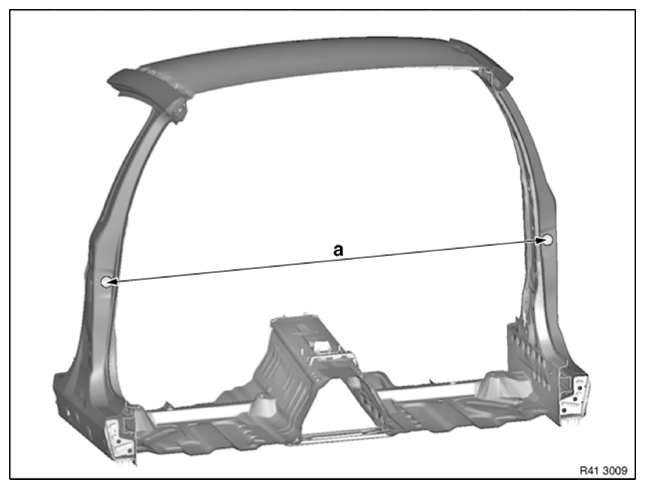

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement a=1542 mm between screw-on points of door brakes.
