Removing mechanics for panoramic roof cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

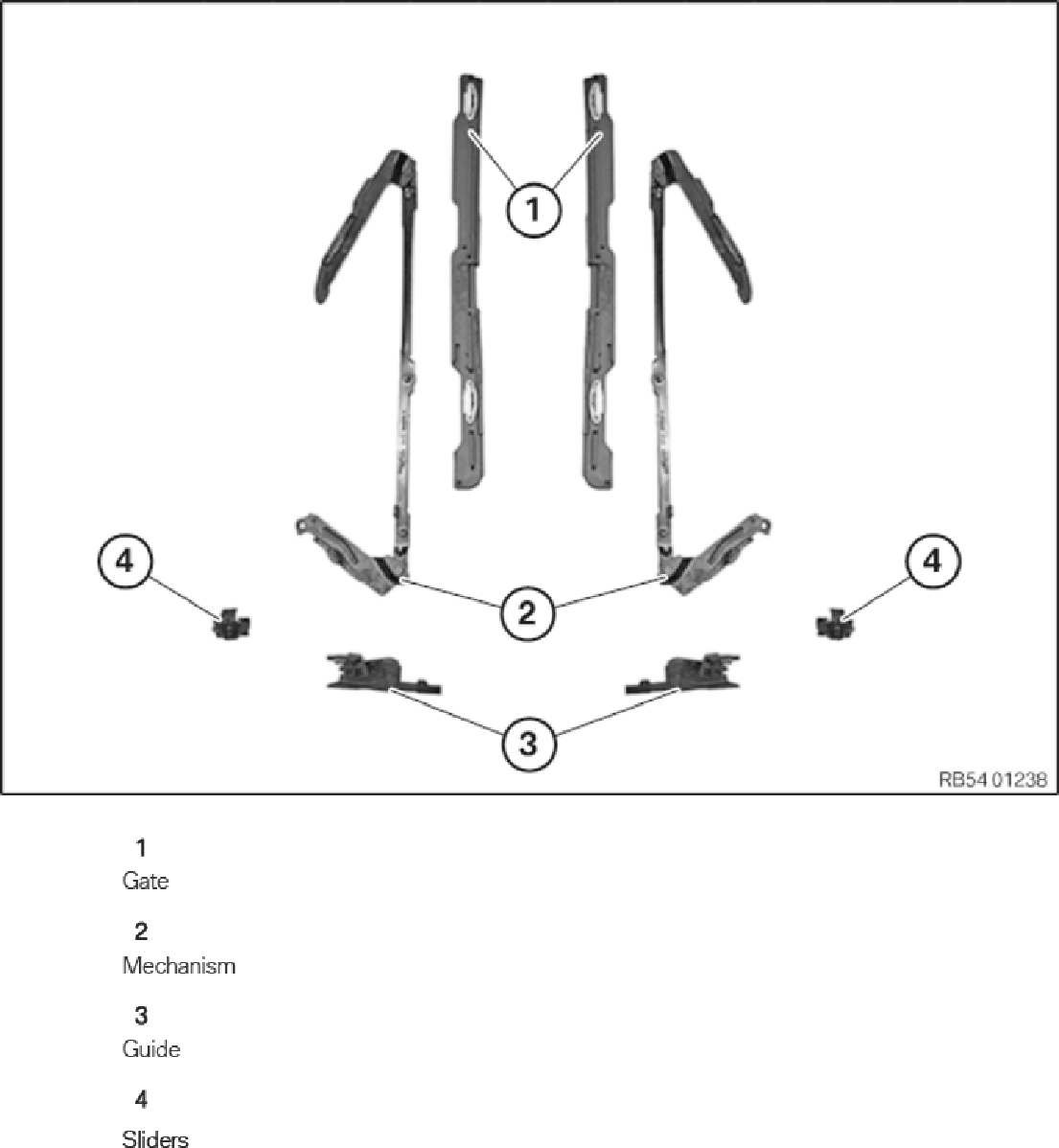

Separate components of the repair kit for mechanics

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Always install all parts of the repair kit.
Carry out the work on one side first and then shift on to the other side.

Always carry the panoramic roof (1) with the assistance of another person and only within the marked areas (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Shift the mechanism manually until the guide (1) is accessible.
Unclip guide (1) with special tool 2 298 505and 0 493 681 (64 1 020) in the direction of the arrow .

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the guide (1) out in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Shift the mechanism (1) manually until the slider (2) becomes visible above the aperture.
Detach the mechanism (1) in area (A) from the rail (3) toward the top.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the guide (1) out of the rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Slide the mechanism (1) to the back until the slider (2) exits the rail (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Tilt the mechanism (1) up and feed it out of area (A) from the rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Flip the gate (1) outward until the slider (2) exits the rail (3).
Guide the gate (1) out upwards in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
