Removing and installing rear left or right shock absorber (EDC) (X2 2018-2023)

Special tools required:

• 2 358 630

Installation note:

1. All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
2. Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

• Refer to REMOVING THE REAR WHEELS .

Removal:

Secure special tool 2 358 630  with wheel studs to drive flange.

Support trailing arm with special tool 2 358 630  and workshop jack on wheel hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Release shock absorber (2) from trailing arm by unscrewing screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack and relieve coil spring.

Place workshop jack to side.

Courtesy of BMW OF NORTH AMERICA, INC.

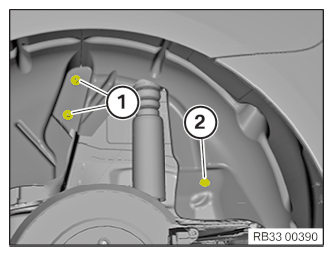

Release nuts (1) and screw (2) of wheel arch panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Bend wheel arch panel to side.

Disconnect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove shock absorber (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend wheel arch panel to side.

Align shock absorber (2) to body.

Tighten down screws (1).

Tightening torque 33 52 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert workshop jack into special tool 2 358 630  .

Press trailing arm upwards with special tool 2 358 630  until shock absorber can be screwed to trailing arm.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 33 52 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Lower workshop jack and place to one side.

Remove special tool 2 358 630  .

Courtesy of BMW OF NORTH AMERICA, INC.

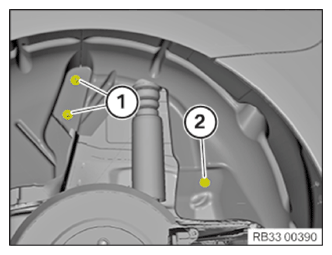

Tighten wheel arch panel nuts (1) and screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING REAR WHEELS .
