Replacing the audio amplifier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

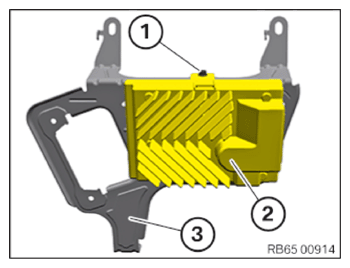

- Loosen screw (1) .
- Slide the audio amplifier (2)
upwards and remove from holder (3)
.
- Replace audio amplifier.
Parts: Audio amplifier
- The tabs (1)
of the audio amplifier (3)
must be correctly pushed into the guides (2)
on the holder.
- Position the audio amplifier (2) on the holder (3) .
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATIONS
Amplifier/RAM to holder M5 screw Tightening torque 3 Nm Nut Tightening torque 3 Nm
