Installing the rear seat bench

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .

Protect working area.
Handle tools and components carefully.

Cover the door sill using protective covers.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Heavy component .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
Lift the rear seat bench into the vehicle with the help of an auxiliary person and position it.
If necessary, connect any available plug connections.
Screw the bolts (2) in a few turns.
Screw the bolts (1) in a few turns.

Courtesy of BMW OF NORTH AMERICA, INC.

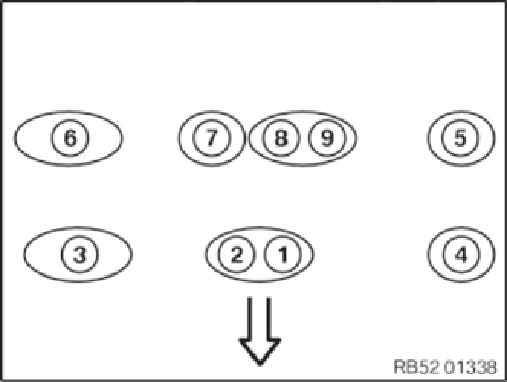

Tighten the screws in a sequence from 1-9.

TIGHTENING TORQUE SPECIFICATIONS

Rear seat bench to the body
Oval-head screw	Tightening torque	42 Nm

Fig 1: Rear Seat Bench Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to INSTALLING HOOK AND LOOP TAPE FOR THE VEHICLE TOOL KIT .
Refer to INSTALLING TOOLKITS .
Refer to INSTALLING THE EMERGENCY WHEEL .
Refer to INSTALLING THE LUGGAGE COMPARTMENT REMOVABLE PANEL .
