Removing rear panel on the front seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Version with folding table:
Press the lock together and move folding table (1) fully to the top.
- Detach folding table (1) from the rail.

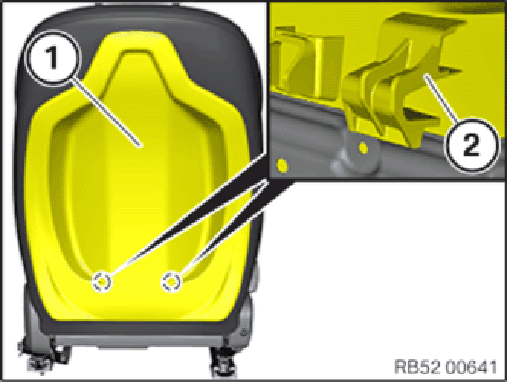

- Detach rear panel (1) towards rear from clips (2).

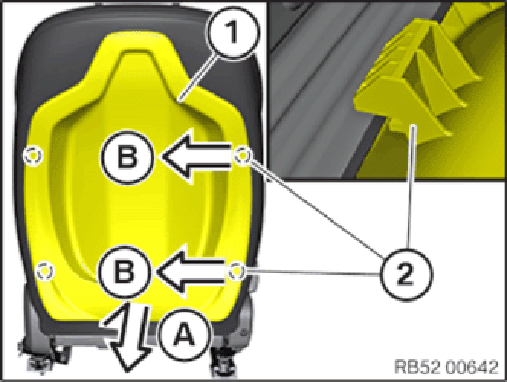

- Hold behind rear panel (1) and press detents (2) upwards.
- Hold rear panel (1) towards rear under tension.
- Pull rear panel (1) in lower area slightly towards rear/bottom, direction of arrow (A).
- Press rear panel (1) in arrow direction (B) and release detents (2).
