Removing holder with rubber mount

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE FRONT UNDERBODY PROTECTION .

WARNING: Car may slip off the vehicle hoist where components are supported .
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

Support the engine with the jack at an appropriate point.

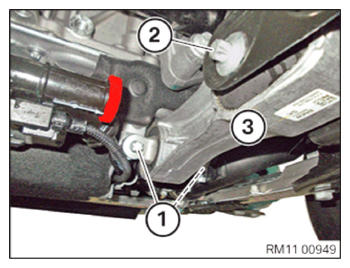

Loosen screws (1) and (2).
Feed out the holder (3) with rubber mount and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
