Remove right engine mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE UPPER FIREWALL COVER PANEL .
- Refer to REMOVING SUSPENSION CROSS-BRACE .
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to EVACUATING THE AIR CONDITIONING .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE SERVOMOTOR FOR THE ECCENTRIC SHAFT .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE FILLING HOSE OF THE WASHING LIQUID CONTAINER .
Precondition
Heating and air conditioning system has been drawn off.
CAUTION:
Residual pressure in the heating and air conditioning system
.
Injury hazard!
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.
- Prepare the special tool 2 414 691 with the special tool 2 357 071 .
- Attach special tool 2 414 691 to front axle support and align special tool 2 357 071 correctly under the oil sump and then tighten.
- Turn special tool 2 414 691 at adjusting screw uniformly upwards, until the special tool 2 357 071 makes contact with the oil sump.
- Tighten all the adjusting screws of the special tools 2 414 691 and 2 357 071 .
CAUTION:
Residual pressure in the heating and air conditioning system
.
Injury hazard!
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.
- Thread out holder (1) and set aside.
- Unlock and loosen holder (2).
- Loosen screw (3).
- Feed out the refrigerant line (4) and put to one side.
- Seal refrigerant line (4) using commercially-available seal plug.
- Replace the sealing ring (1) on the refrigerant line (2).
Parts: Sealing ring
- Loosen screw (1).
- Thread out partition wall (2) and place to one side.
- Loosen screw (3).
- Feed out the refrigerant line (4) and put to one side.

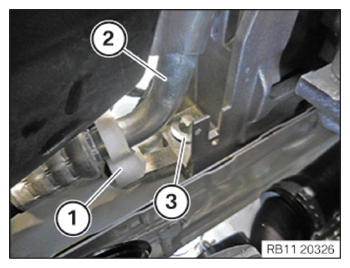

- Unlock and loosen holder (1).
- Feed out the refrigerant line (2) and put to one side.
- Loosen screw (3).
- Loosen screw (1).
