Removing and installing anti-roll bar link for left or right anti-roll bar (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Refer to REMOVING FRONT WHEEL .

Removal:

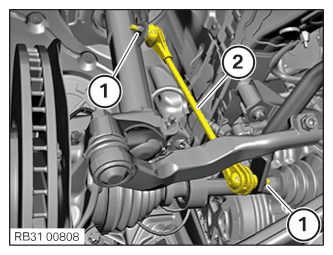

Release nuts (1); if necessary, grip at inner Torx socket.

Remove the anti-roll bar link (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position the anti-roll bar link (2) on the anti-roll bar and on the spring strut.

Replace nuts (1).

Parts: Nuts

Tighten nuts (1), if required counter support at Torx socket.

Tightening torque 31 35 1/2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING FRONT WHEEL .
