Installing coolant expansion tank

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Follow notes for repair work on the cooling system. For additional information see:
NOTES FOR WORKING ON THE COOLING SYSTEM

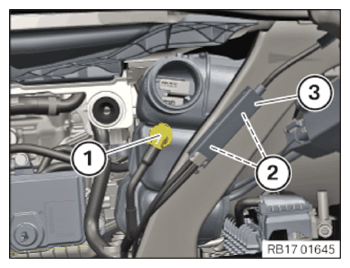

Connect the coolant line (2) to the coolant expansion tank (3) and lock it in position.
Make sure that the cooling line (2) engages audibly.
Release clamping pliers (1) from the coolant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the coolant expansion tank (1) at the side.
Feed coolant expansion tank (1) with guide pin (2) into the guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the coolant expansion tank (2).
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Coolant expansion tank to body
M6x20	tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the coolant lines (1).
Make sure that you can hear the coolant lines (1) engage.
Feed in and install the clutch with the Bowden cable (3).
Locks (2) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Adjust the coolant level to the maximum mark .

Courtesy of BMW OF NORTH AMERICA, INC.
Shut sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
