Installing The Tailgate
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Shutting hood or trunk lid
.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Position the tailgate on the vehicle. Make sure the striker does not engage in the tailgate lock. If necessary, cover the tailgate lock.

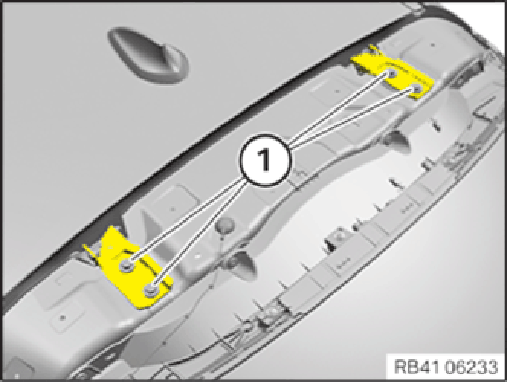

- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Trunk lid to the hinge Hexagon screw M8 Tightening torque 28 Nm - Carefully close the tailgate and check for bodywork contact, reposition tailgate if necessary.
- Open tailgate.

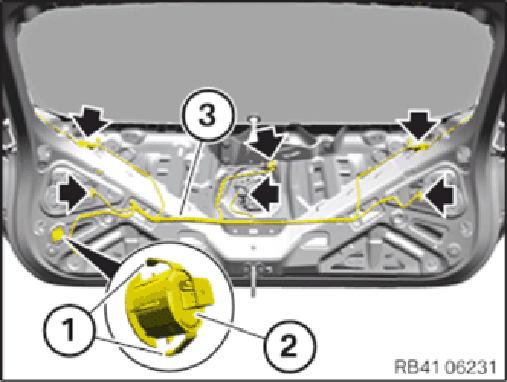

- Feed the connector (1) into the tailgate and connect.
- Install rubber grommet (2)
. Ensure the correct installation (watertightness).

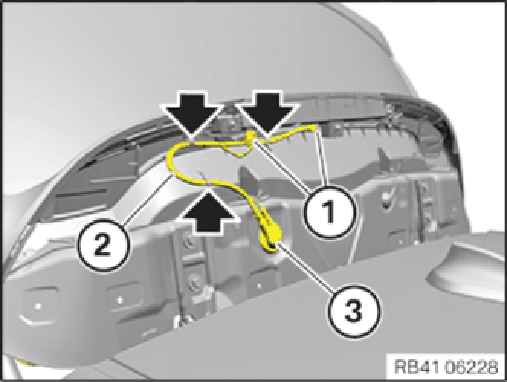

- Thread wiring harness (1) and wiring harness (2) into the tailgate.
- Install rubber grommet (3) . Ensure the correct installation (watertightness).

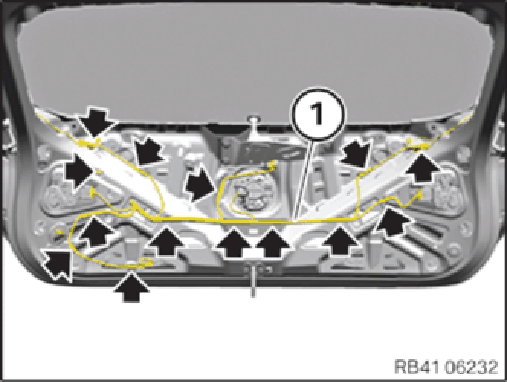

- Secure the wiring harness (1)
at the marked points (arrows).

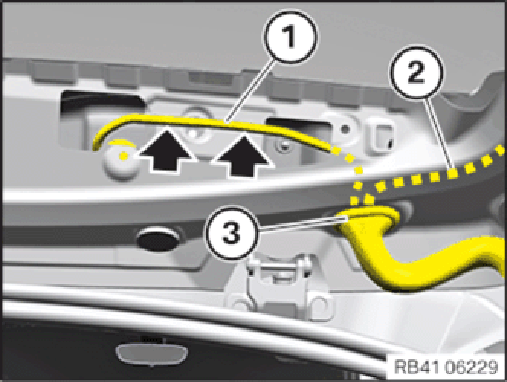

- Feed the rubber grommet (3) together with the wiring harness (2) through in an outward direction.
- Secure the wiring harness (2) at the marked points (arrows).
- Connect and lock the plug connections (1)
.
- Secure the wiring harness (1)
at the marked points (arrows).

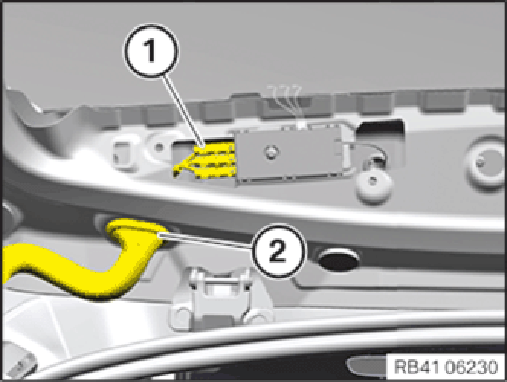

- Connect connectors for acoustic sensor (2) and lock.
- Install acoustic sensor (2) . Clip in tabs (1) .
- Connect all the plug connections (arrows) of the vehicle wiring harness (3)
and lock,
