Adjusting The Rear Door On The Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Follow-up work

NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00... Gap dimensions for body

NOTE: Description is for left component only. Procedure on the right side is identical.

Check

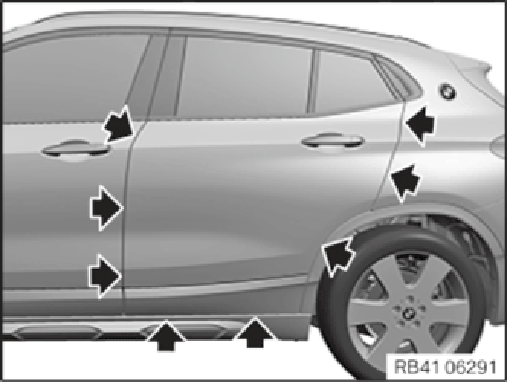

Check the gap dimensions between the rear door and adjacent body components.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Gap dimensions do not correspond to the specifications.

Measure
Adjust door
Open the rear door.

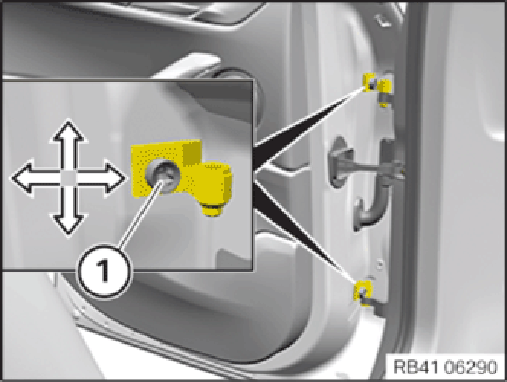

Slacken screws (1) until the door can be moved.
Adjust height of door (Z).
Adjust door width (Y).

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear door to door hinge
Screw
	tightening torque	40 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

The screws on lock striker are loosened so far that the lock striker can still be shifted.

NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: 41 00...
Gap dimensions for body

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust the height of the lock striker so that the door lock does not bump or drag,
Move lock striker sideways in order to adjust the gap dimensions between door and rear quarter panel.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Lock striker
screw
	Tightening torque	21 Nm
