Removing The Front Side Panel On The Right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... Raise the vehicle using a vehicle lift.

Preliminary work

Refer to REMOVING THE GUTTER STRIP ON THE RIGHT OF THE WINDSCREEN .
Refer to REMOVING THE WHEEL .
Refer to REMOVING THE FRONT WHEEL ARCH TRIM .
Refer to REMOVING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to REMOVING SIDE PANEL SEALING .

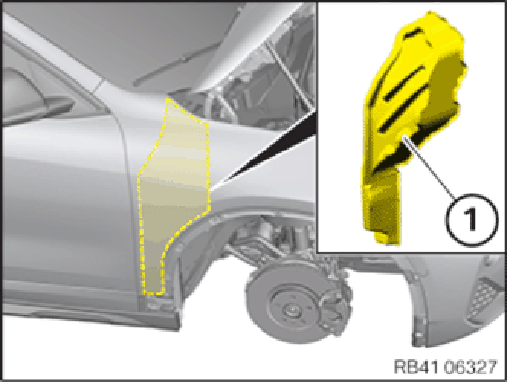

Remove the sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.

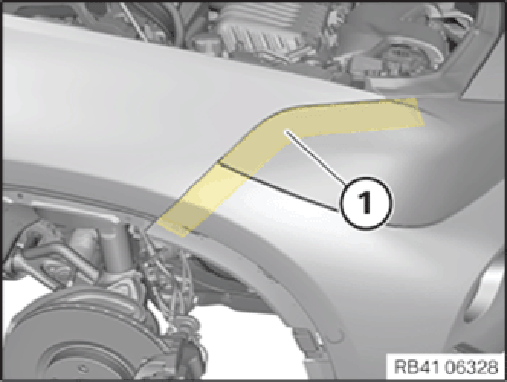

Mask the area (1) around the headlights and at the bumper panel using plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

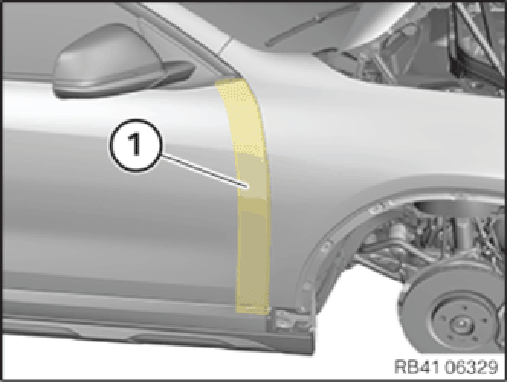

Mask the area (1) of the door with plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

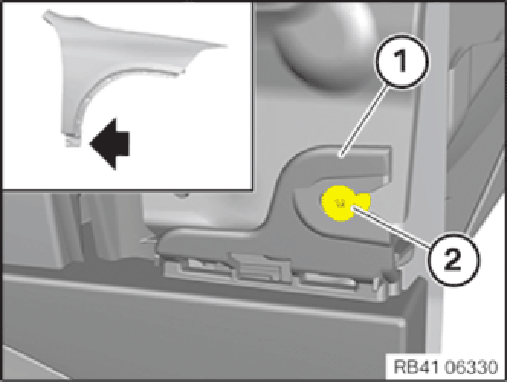

Release the clip (1) and release the side sill trim panel (2) on the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

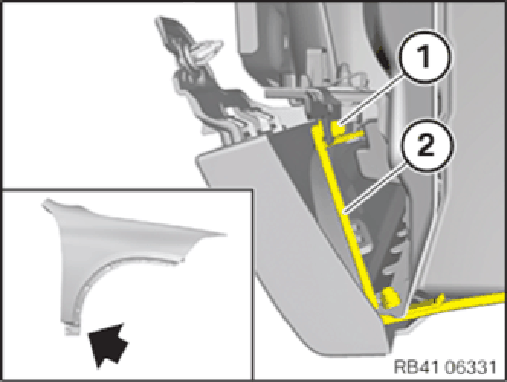

Release the clip (1) and release the wiring harness (2) from the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

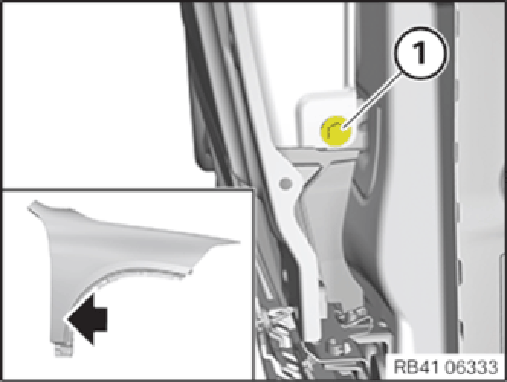

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

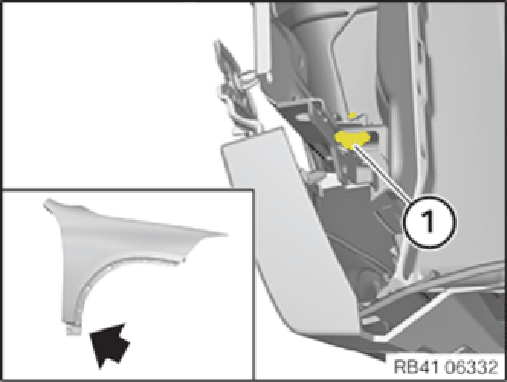

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

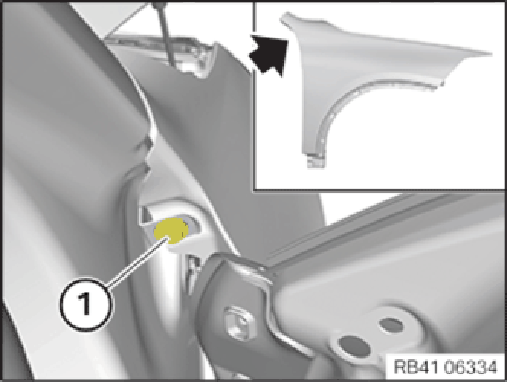

Open the front door.
Loosen screw (1).
Close front door.

Courtesy of BMW OF NORTH AMERICA, INC.

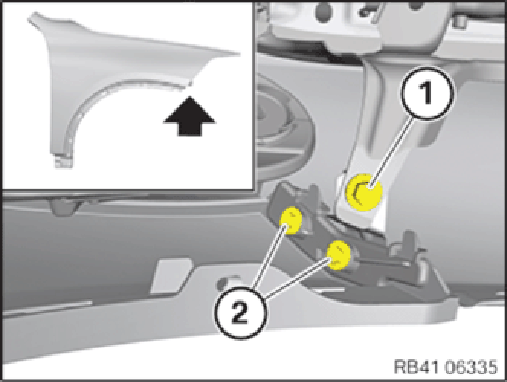

Loosen screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

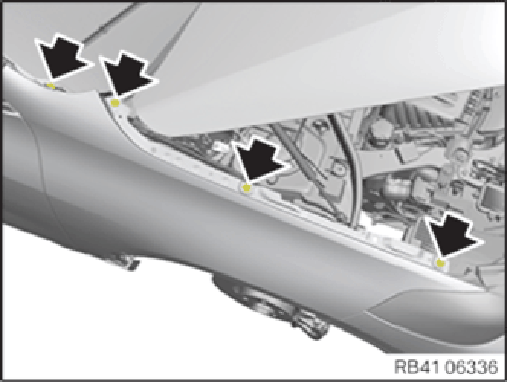

Release the screws (arrows) and remove the side panel.

Courtesy of BMW OF NORTH AMERICA, INC.
