Removing The Tail Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

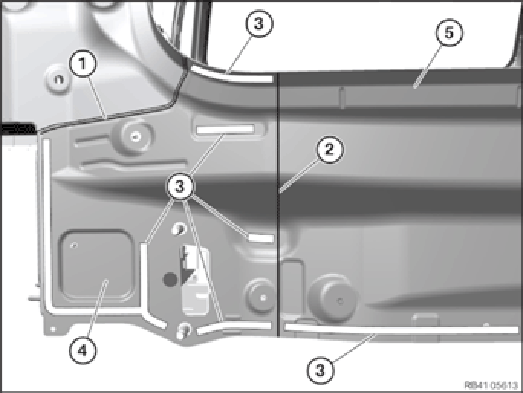

Make the separating cut (1) according to the schematic diagram. Thereby disconnect only the outer panel.
Make the separating cut (2) according to the schematic diagram. Completely cut through the tail panel.
Loosen welded connections in areas (3).
Remove sections (4) and (5).

Courtesy of BMW OF NORTH AMERICA, INC.

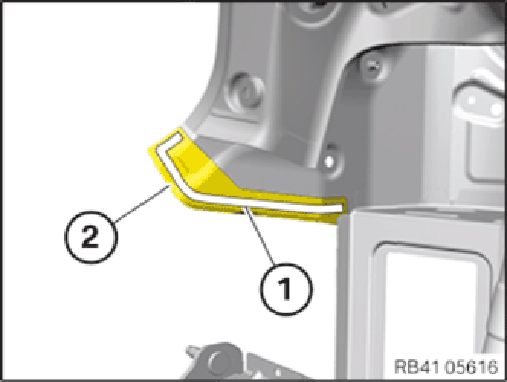

Release welded connections in areas (1) and remove section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

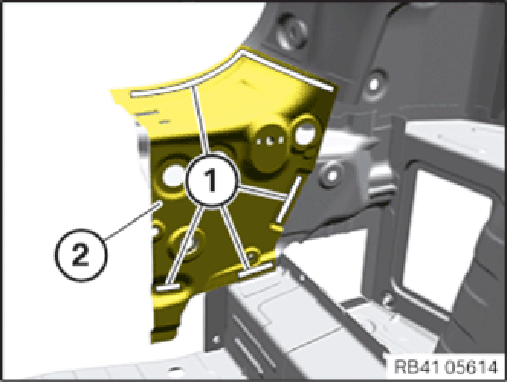

Release welded connections in areas (1) and remove section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

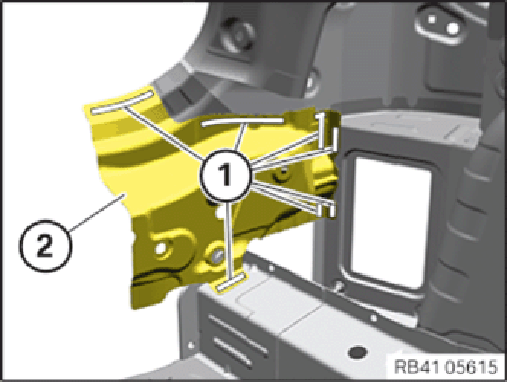

Remove welded connections in areas (1) and remove metal section (2).

Courtesy of BMW OF NORTH AMERICA, INC.
