Remove Tail Panel Outer Section

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

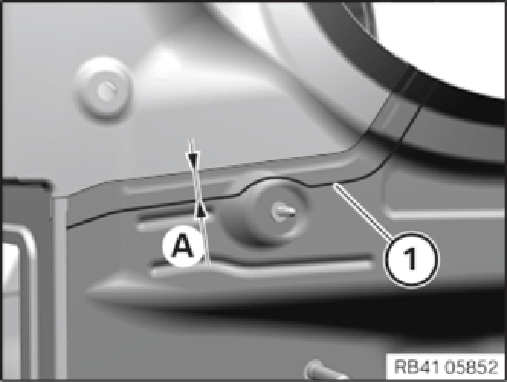

Mark severance cut (1) in accordance with dimension and disconnect. Disconnect only the outer panel.
Dimension a = approx. 20 mm below the component edge of the rear light fixture.

NOTE: Install the new part overlapping in area of the separating cut.

Courtesy of BMW OF NORTH AMERICA, INC.

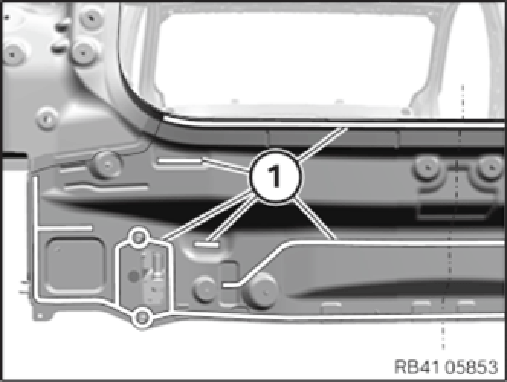

Open the welded connections in the areas (1) to and remove the tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.
