Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .
Damage to the spindle drive .
Shifting the trunk lid manually can damage the spindle drive .
- Only shift trunk lid slowly hand force.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
NOTE:
Perform the steps on the left and right side.

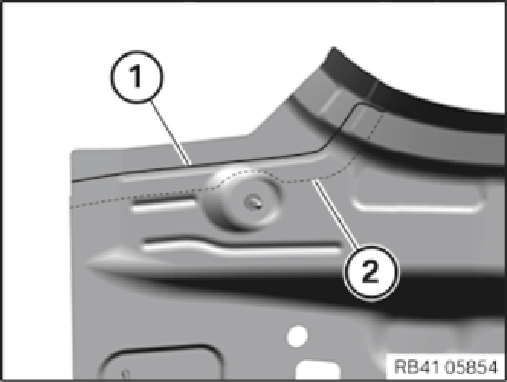

- Mark the separating cut (1) on the new part to reflect the separating cut on the vehicle + approx. 15-20 mm material allowance and carry out the cut.
(2) = Separating cut on the vehicle
- Adjust and secure the tail panel in combination with the tailgate and rear lights.
- In areas (1) to (4), drill bore holes with 0 4.2 mm for blind rivets.
Area Number 1 11 2 2 3 1 4 6 - Remove new part and deburr bore holes.
